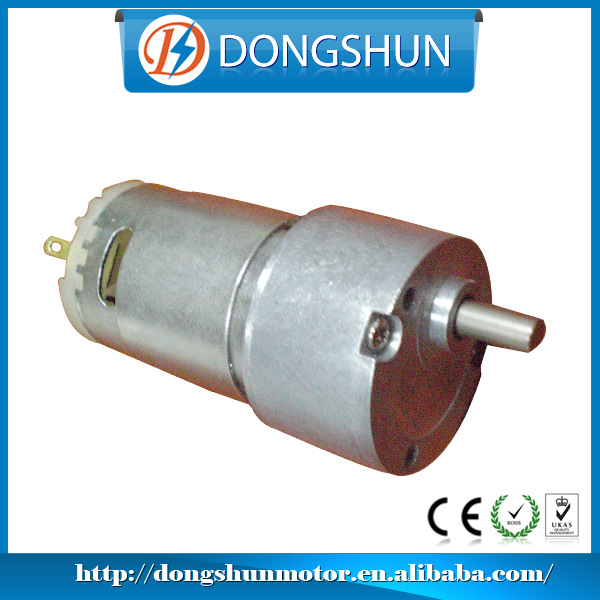

微型直流齒輪電機DS-33RS385

直徑33mm 電動齒輪馬達

1.廣泛應用:自動快門,錢探測器,裝訂機,自動電視架,包裝紙幣機,

聚光燈下,組織機、辦公設備、家用電器、自動執行機構

2.電壓:6VDC 9VDC 12VDC 24VDC

3.力矩:2kgf.cm to8kgf.cm

4.齒輪箱:33mm

5.Weight:150~180g/pcs(Approx)

6.Packing details: CTN size:36.5*31*H17cm 60pcs/CTN G.W.:12Kgs

Our DC Spur Gear Motor is with high torque,low speed,low noise ,good quality,long life,lower price ,fast delivery

And the performance can adjust for customer

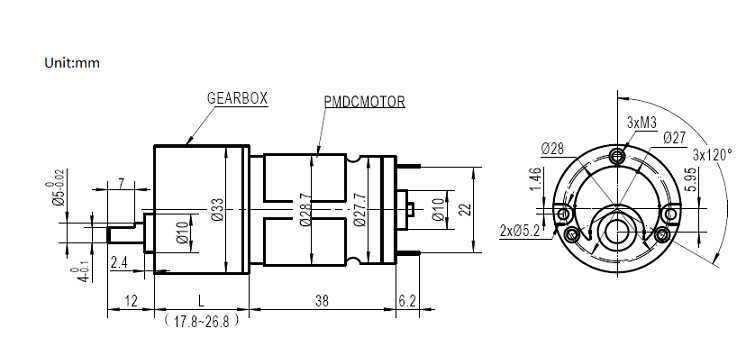

Appearance size:

Gearbox Data:

Number of stages

3 stages reduction

4 stages reduction

5 stages reduction

6 stages reduction

7 stages reduction

Reduction ratio

20

36;50

90;125

226;312

511;547;

585;730;781

Max .Running torque

2Kgf.cm

4Kgf.cm

6Kgf.cm

8Kgf.cm

10Kgf.cm

Max.Gear breaking torque

6kgf.cm

8kgf.cm

12kgf.cm

16kgf.cm

20kgf.cm

Max.Gearing efficiency

73%

65%

59%

50%

41%

Gearbox Length (“L”) mm

17.75

20mm

22.25

24.5

26.75

Motor Data:

Motor name

Rated

Votage

V

No load

Load Torque

Stall torque

Current

Speed

Current

Speed

Torque

Output

power

Torque

Current

mA

rpm

mA

rpm

gf.cm

W

gf.cm

mA

RS0

12

≤45

3000

≤150

2200

35

0.8

140

450

RS0

12

≤70

4500

≤300

3300

55

1.8

220

1200

RS0

12

≤100

6000

≤600

4500

80

3.6

320

1900

RS0

24

≤25

3000

≤70

2200

35

0.8

140

230

RS0

24

≤40

4500

≤150

3300

55

1.8

220

600

RS0

24

≤50

6000

≤300

4500

80

3.6

320

1000

Remarks: motor data can be adjusted according to customers requirement.

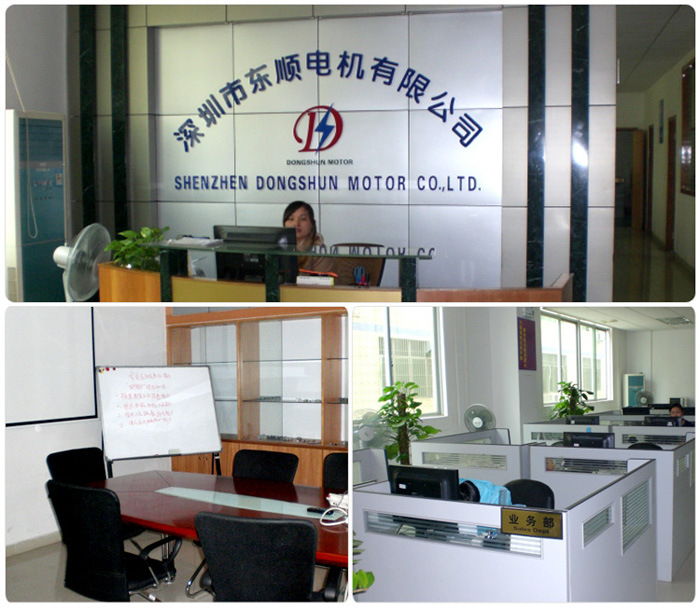

我們的辦公室

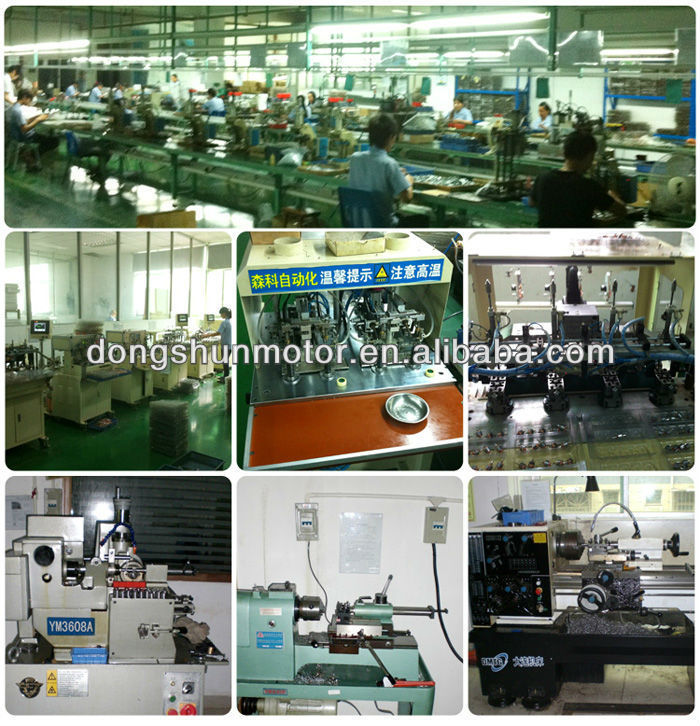

我們的產線

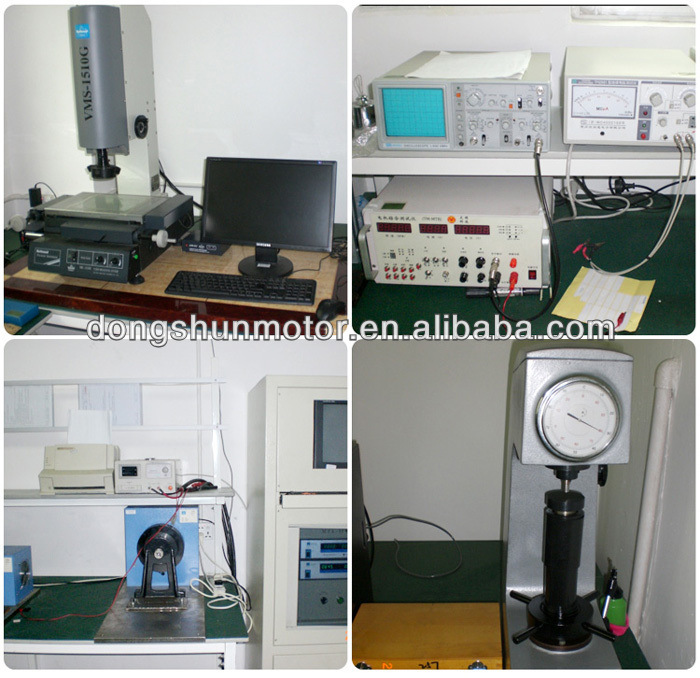

我們的設備

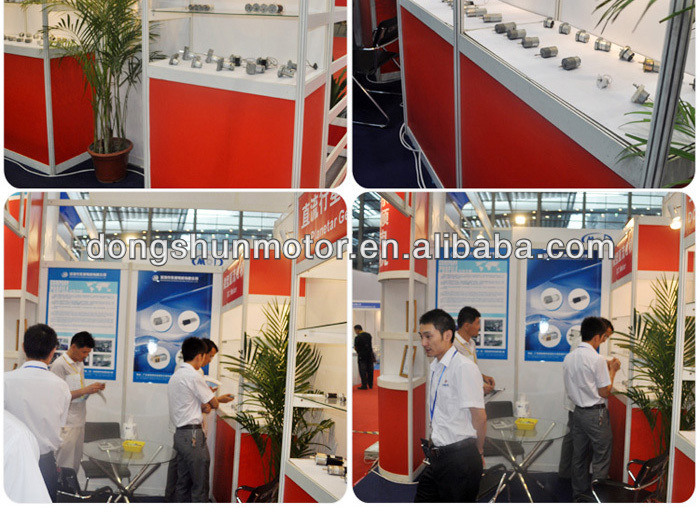

我們的展會
